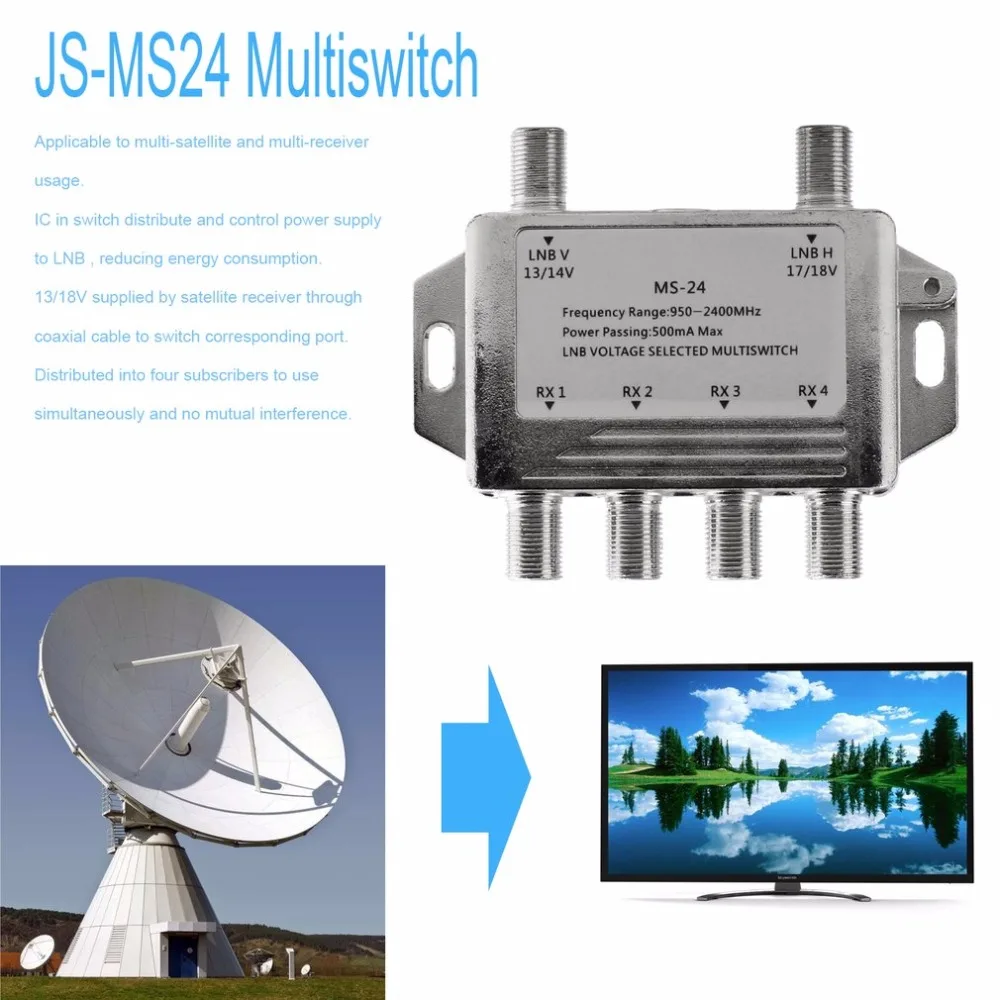

Features:
Applicable to multi-satellite and multi-receiver usage.
IC in switch distribute and control power supply to LNB , reducing energy consumption.
13/18V supplied by satellite receiver through coaxial cable to switch corresponding port.
Distributed into four subscribers to use simultaneously and no mutual interference.
Capable of connecting two SATV signals simultaneously, which is switched through 13/18V.
Descriptions:
Low power consumption

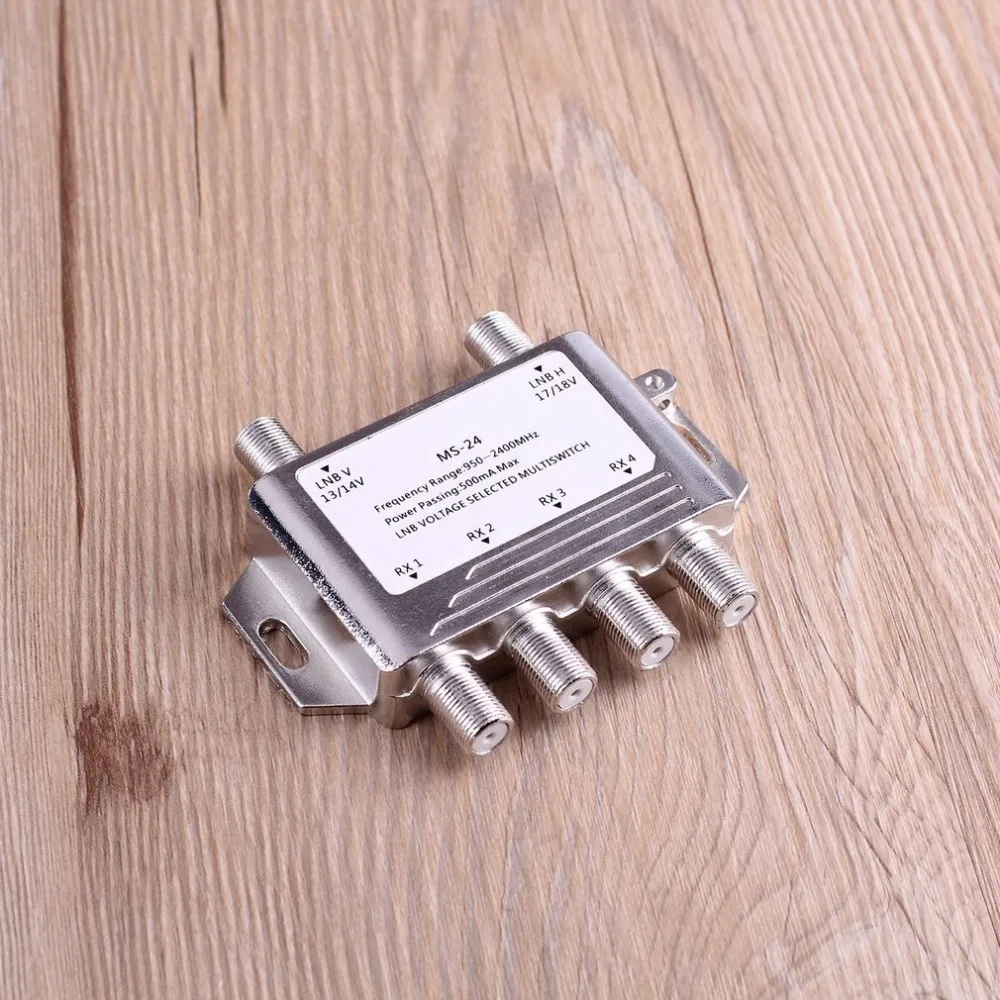

Zinc die-cast housing, nickel-plated
Built-in amplification circuit compensate cable loss.
2 SAT signals input is supplied 4 users simultaneously
Specifications:
Color: silver
LNB frequency range: 950-2400MHz
Insertion loss: 5dB
Return loss: 10dB
Isolation: 26dB
LNB V voltage: 13V/14V
LNB H voltage: 17V/18V
DC current consumption: 30mA
Max. DC current to LNB: 500mA
Input and output: 75¦¸, F type connector
Model: JS-MS24
Package included:
1 x JS-MS24 Multiswitch
Notes:

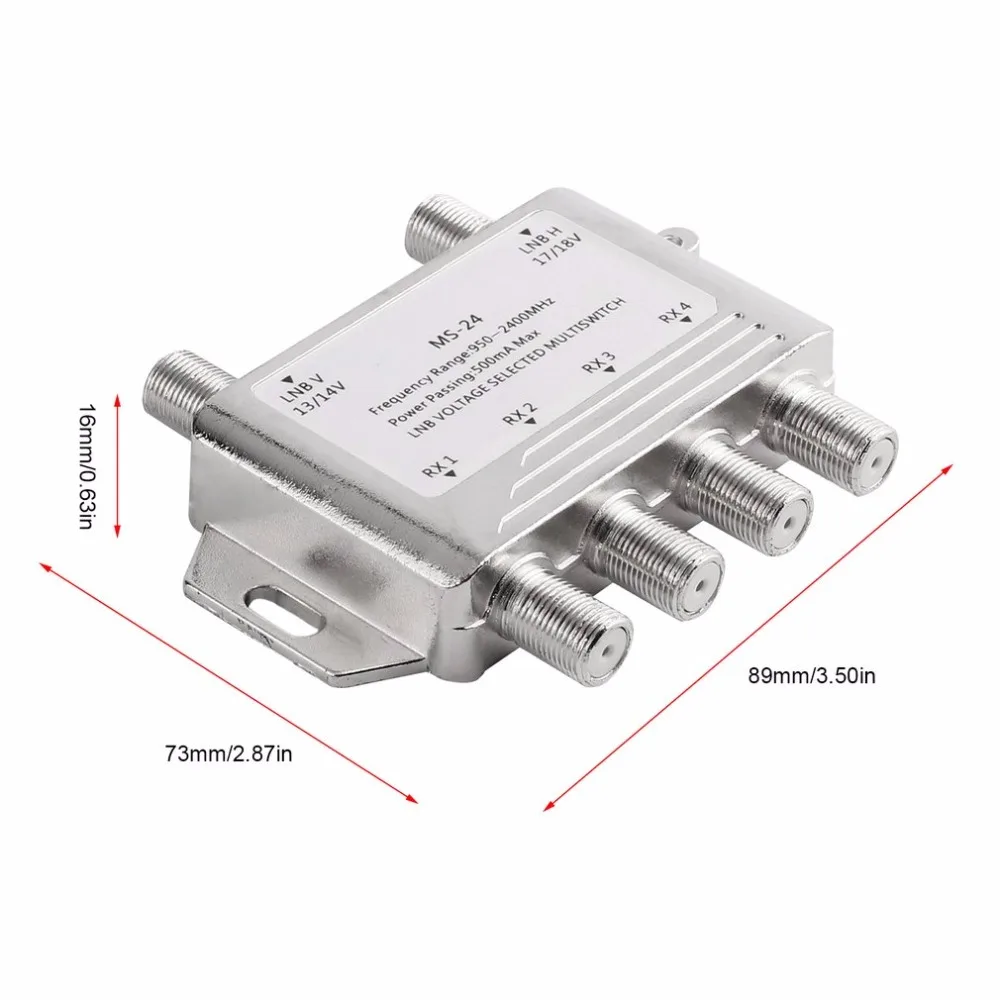

Please allow 0-2mm error due to manual measurement, thanks for understanding.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand, thank you!
