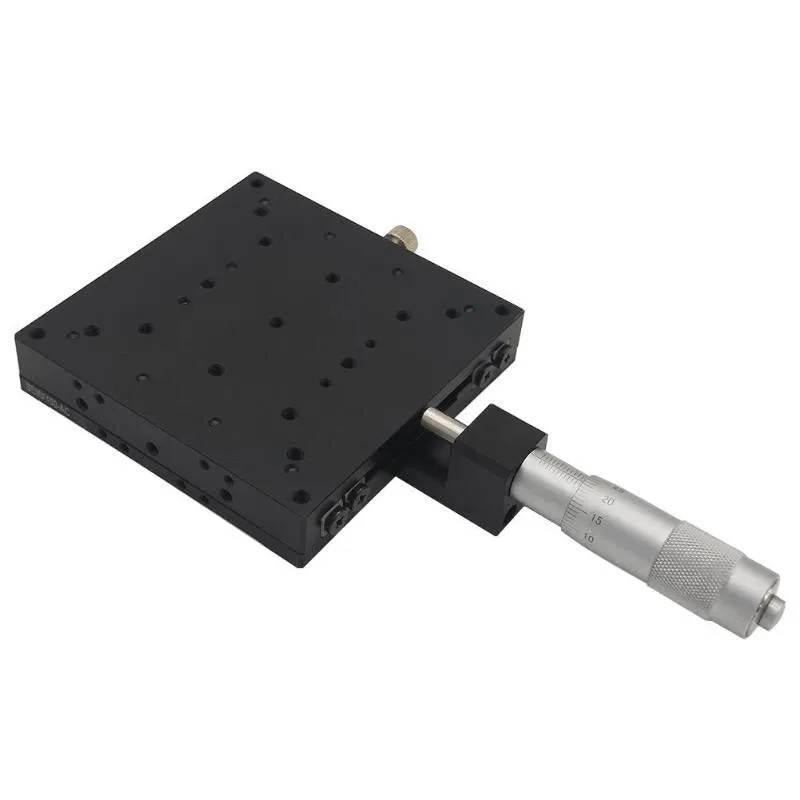

Trimming Platform Manual Linear Stages Bearing Tuning Sliding Table Cross Rail for Production Machinery Testing Equipment

$84.50
0 sold
Color
Qty
Specifications:
Material: Alloy
Applications: Widely used in production machinery, detection devices, optical measurement, fine-tuning displacement, precise positioning, quantitative movement and so on.

A:
Precision of centimeter: 0.01mm
Table Size: 40x40mm/1.57x1.57"
Guide way: cross roller type
Shaft scale: X-axis
Tolerance: 19.6N
Travel: ¡À6.5
Parallelism: 30 um
Moving parallelism: 10 um
Truth straightness: 3 microns
Longitudinal yaw: 25"
Lateral yaw: 15"

B:
Precision of centimeter: 0.01mm
Table Size: 60x60mm/2.36x2.36"
Guide way: cross roller type
Shaft scale: X-axis
Durability: 49N
Travel: ¡À6.5
Parallelism: 30 um
Moving parallelism: 10 um
Truth straightness: 3 microns
Longitudinal deflection: 25"
Lateral yaw: 15"

C:
Precision of centimeter: 0.01mm
Table Size: 80x80mm/3.15x3.15"
Guide way: cross roller type
Shaft scale: X-axis
Tolerance: 98N
Travel: ¡À12.5
Parallelism: 30 um
Moving parallelism: 10 um
Truth straightness: 3um
Longitudinal yaw: 25"
Lateral yaw: 15"

D
Precision of centimeter: 0.01mm
Table Size: 100x100mm/3.94x3.94"
Guide way: cross roller type
Shaft scale: X-axis
Tolerance: 147N
Travel: ¡À12.5
Parallelism: 30 um
Moving parallelism: 10 um
Truth straightness: 3 microns
Longitudinal yaw: 25"
Lateral yaw: 15"

Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.?
1 X?Tuning Sliding Table?
?
?


?

?

?

?


?
