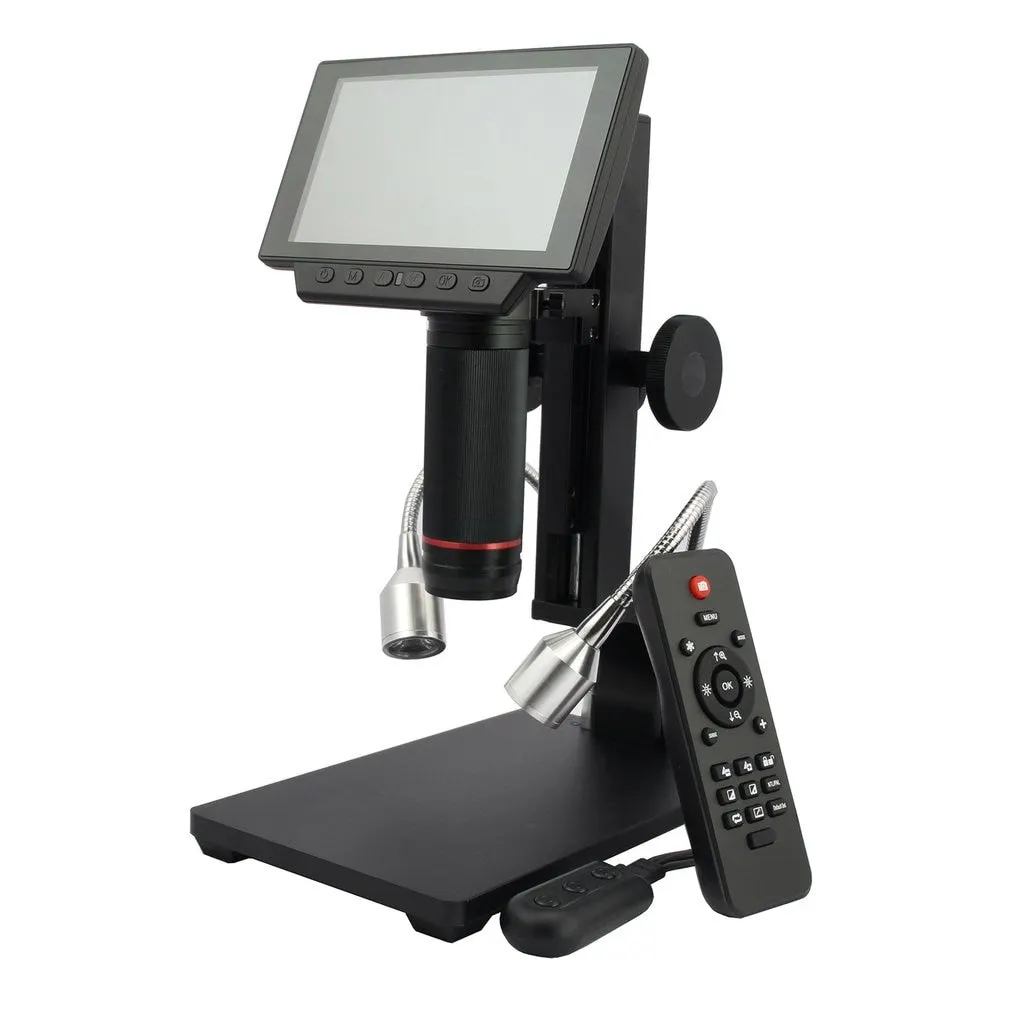

ADSM302 5 Inch Screen Digital LCD HDMI Microscope 3MP Video Recording Magnifier for PCB Mobile Phone Repair Soldering
Features:
- 3 Mega Pixels HD Sensor, clear to see.
- 5 inches large screen, easy to observe.
- With 2 LEDs on the stand.
- Support Micro Security Digital card up to 32G (card NOT included).
- Suitable for PCB Repairing.
Descriptions:
- Screen size: 5 inch
- Image sensor: 3 Mega Pixels HD Sensor
- Video output: 1080P Full HD (via HDMI); 720P (via PC)
- Video format: MJPEG (via USB); real time play via HDMI w/o recording
- Magnification: Up to 560 times (HDMI monitor 22 inch)
- Photo resolution: 12M
- Photo format: JPEG
- Focus range: 5cm to 22cm
- Frame rate: Max 30f/s under 600 Lux Brightness
- Video-output interface: HDMI/AV
- Storage: Micro Security Digital card, up to 32G (card NOT included)
- Power source: 5V DC
- Light source: 2 LEDs on the stand
- Certification: CE/FCC/ROHS
Specifications:
- Model: ADSM302
- Material: metal + plastic
- Color: black
- Screen Size: 130*85mm
- Stand Size: 200*120*265mm
- Plug Type: US plug, EU plug, AU plug
Package included:
- 1 x microscope
- 1 x metal stand
- 1 x USB cable
- 1 x HDMI cable
- 1 x power adapter
- 1 x IR remote controller
- 1 x user manual
Notes:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Due to different personal measuring techniques, there might be 1-3cm error of the physical. Thank you!
