Specifications:

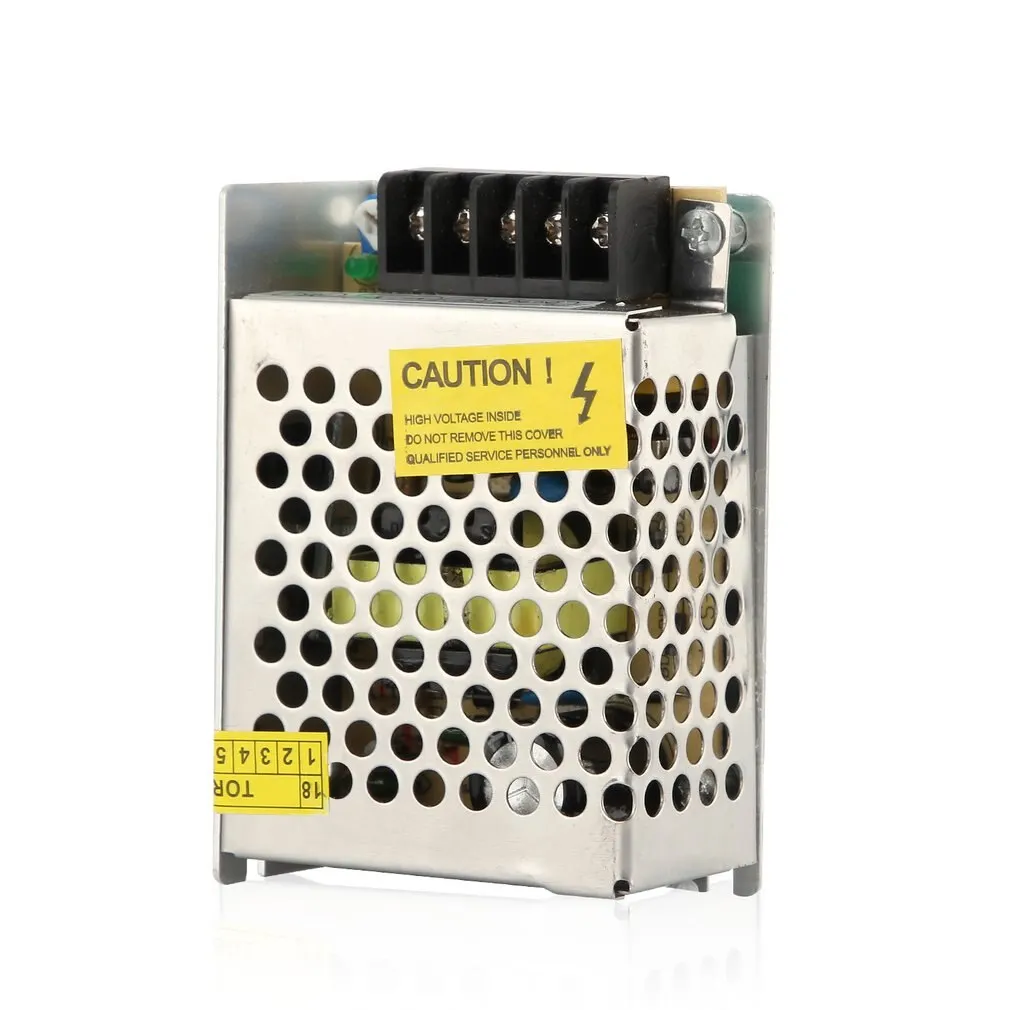

1.This is a DC12V Power Supply Unit for professional use on LED lightning, Security Surveillance System, CCTV Security Camera, IP Camera, and etc.
2.Safety design with shortage protection, overload protection and auto voltage switching.
3.Regulated voltage & current output. This is a perfect choice to use as a LED Driver for all type of LED lighting 3.without flickering light & ensue the life span of your LED.
4.Full range of current output is possible for LED lighting with dimmable function.
5.Voltage output fine adjustment is available for different power condition.
Descriptions:
100% full load burn-in test
Universal AC input / full range
It's good quality & high performance
Specifications:
Input: AC110-265V 50/60Hz
Out put: DC 12V
Protections: overload/ over voltage/ short circuit
Cooling by free air convection
(Not suggest for use in bathroom)
Connection:
L, N: AC power input
GND: DC power output "-"
V: DC power output "+"
+V / ADJ: Adjust the output voltage
Safety Compliance: CCC/ FCC / CE
Working Temperature: 0~40¡ã
Storage Temperature: -20~60¡ã
Ambient Humidity: 0~95% Non-Condensation
Compatible with 3528, 2835 ,3014, 5050, 5630 ,5730 Led strip lights
Size:30*50*80??40*70*110??40*90*190??50*110*190
Power options:24w.60w.180w.250w.360w
Package include:
1 x Power supply
